Pumps & Basic Specs of Our Fleet
Our fleet of concrete pumping trucks are ready, willing, and able to do the job and do it right!
LB-40 Loop Belt
- Maximum Rated output 400 yrd/hr4
- Maximum Aggregate size is 4” rock
- Vertical reach is 72’
- Reach from the back of the truck is 129’9”
- Unfolding Height is 16’9”
- Outrigger front spread 31’3”
- Outrigger rear spread 32’3”

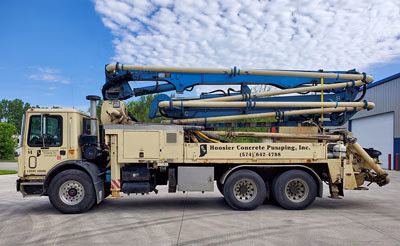

BSF28Z 16H
- Maximum output 150 yrds/hr
- Maximum aggregate size 1.5”
- Vertical reach 89’7”
- Reach from the front of the truck 69’ 2”
- Unfolding height 21’4”
- Rotation 365 degrees
- Section articulation 90/180/250/248
- 1st section 23’
- 2nd section 18’4”
- 3rd section 18’4”
- 4th section 18’4”
- Outrigger front spread 20’ 5”
- Outrigger rear spread 8’7”
BSF32Z-16H
- Maximum output 150 yrds/hr
- Maximum aggregate size 1.5”
- Vertical Reach 106’
- Reach from the front of the truck 83’8”
- Unfolding Height 24’ 11”
- Rotation 365 degrees
- Section articulation 96/180/255/232/
- 1st section 27’11”
- 2nd section 21’8”
- 3rd section 21’8”
- 4th section 21’8”
- Outrigger front spread 18’
- Outrigger rear spread 22’4”
BSF36X
- Maximum output 150 yrds/hr
- Maximum aggregate 1.5”
- Vertical Reach 117’
- Reach from the front of the truck 97’7”
- Unfolding height 27’3”
- Rotation 365 degrees
- Section articulation 94/180/180/255
- 1st section 28’7”
- 2nd section 25’8”
- 3rd section 25’4”
- 4th section 25’7”
- Outrigger front spread 20’8”
- Outrigger rear spread 23’
DCP37X-4R
- Maximum output 150
- Maximum aggregate size 2.4”
- Vertical Reach 119’9”
- Reach from the front of the truck 101’7”
- Unfolding height 27’7”
- Rotation 365 degrees
- Section articulation 93/180/240/250
- 1st section 29’9”
- 2nd section 25’9”
- 3rd section 25’11”
- 4th section 25’9”
- Outrigger front spread 20’4”
- Outrigger rear spread 23’
JXLZ38-16
- Maximum output 150 yrds/hr
- Maximum aggregate size 2.5”
- Vertical Reach 121’ 9”
- Reach from the front of the truck 99’ 5”
- Unfolding height 29’ 2”
- Rotation 365 degrees
- Section articulation 94/180/245/230
- 1st section 29’5”
- 2nd section 25’9”
- 3rd section 26’ 1”
- 4th section 27’ 4”
- Outrigger front spread 20’ 8”
- Outrigger rear spread 23’

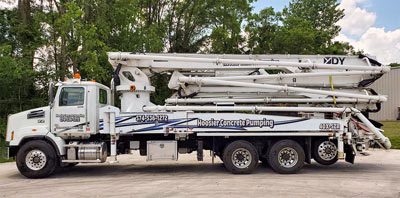

DCP40X-5ZR
- Maximum output 150 yrd/hr
- Maximum aggregate size 2.4”
- Vertical Reach 130’ 2”
- Reach from the front of the truck 107’
- Unfolding height 24’ 9”
- Rotation ∞
- Section articulation 90/180/245/180/250
- 1st section 27’6”
- 2nd section 22’
- 3rd section 22’
- 4th section 22’ 8”
- 5th section 22’8”
- Outrigger front spread 21’
- Outrigger rear spread 28’ 5”
BSF43X
- Maximum output 140 yrds/hr
- Maximum aggregate 1.5”
- Vertical reach 141’
- Reach from the front of the truck 118’
- Unfolding height 36’
- Section articulation 90/180/180/255
- 1st section 36’5”
- 2nd section 32’6”
- 3rd section 29’10”
- 4th section 27’
- Front outrigger spread 28’
- Rear outrigger spread 30’
CONCORD 52M
- Maximum output 140 yrd/hr
- Maximum aggregate size 2.5”
- 5 section Z-R Boom
- Vertical Reach 170’7”
- Reach from front of truck 142’
- Unfolding height 31’1”
- Rotation 370 degrees
- Section articulation 92/180/240/180/245
- 1st section 34’8”
- 2nd section 29’6”
- 3rd section 29’10”
- 4th section 32’5”
- 5th section 33’
- Outrigger front spread 29’5”
- Outrigger Rear spread 36’1”

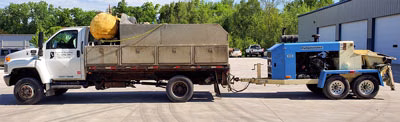

TK-50 & TK-70
The Line Pump truck carries 300 feet of both 4-inch and 3-inch systems. We recommend a second operator for any job that has more than 250 feet of system. We also have 2” available upon request for shotcrete. This is an ideal pump for all types of structural concrete jobs where a boom truck or telebelt can not get to.
- Maximum output for TK 50-54 yrds/hr
- Maximum output for TK 70-74yrds/hr
- Maximum aggregate size 1.50”
- Hopper capacity 9.5 cubic feet
- Horsepower 96

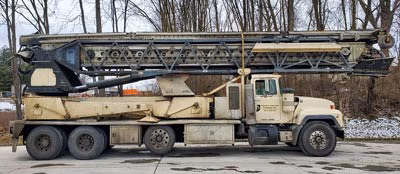

TB-105
- Maximum Rated output 230 yrd/hr
- Maximum Aggregate 4” rock
- Vertical reach 58’8”
- Reach from the back of the truck 97’2”
- Unfolding Height 16’
- Outrigger front spread 24’2”
- Outrigger rear spread 25’2”
33X-5ZZ
- Maximum output 150 yrds/hr
- Maximum aggregate size 1.5”
- Vertical Reach 105’ 7”
- Reach from the front of the truck 82’ 7”
- Unfolding Height 19’
- Rotation 365 degrees
- Section articulation 90/180/245/180/255
- 1st section 25’ 11”
- 2nd section 17’
- 3rd section 16’ 7”
- 4th section 17’ 3”
- 5th section 17’ 3 “
- Outrigger front spread 18’ 1”
- Outrigger rear spread 21’ 4”
57S-6RZ
- Maximum output 150 yrds/hr
- Maximum aggregate size 2.5”
- Vertical Reach 184’ 5”
- Reach from the front of the truck 165’ 7”
- Unfolding Height 38’ 1”
- Rotation 360
- Section articulation 90/180/180/245/240/90
- 1st section 37’ 1”
- 2nd section 30’ 4”
- 3rd section 30’ 4”
- 4th section 36’ 1”
- 5th section 22’ 2”
- 6th section 14’ 9”
- Outrigger front spread 38’ 9”
- Outrigger rear spread 40’ 4”

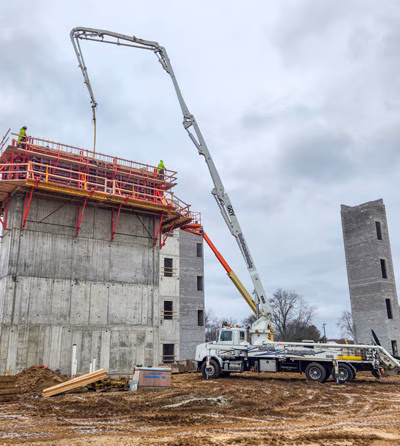

38X-5ZR
- Maximum output 150 yrd/hr
- Maximum aggregate size 2.4”
- Vertical reach 123’ 4”
- Reach from the front of the truck 97’ 5”
- Unfolding height 24’9”
- Rotation 360
- Section articulation 90/180/245/180/250
- 1st section 27’ 3”
- 2nd section 20’ 1”
- 3rd section 20’ 1”
- 4th section 21’ 4”
- 5th section 21’ 4”
- Outrigger front spread 20’ 4”
- Outrigger rear spread 25’
